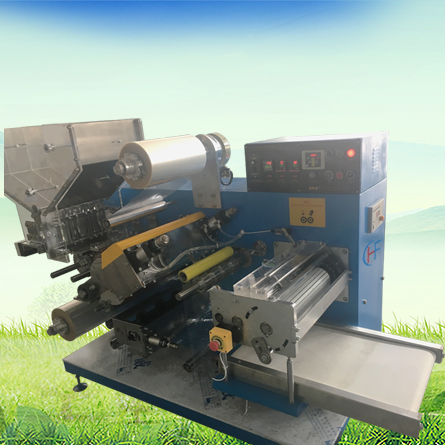

HF-SP800 I straw packing machine

HF-SP800 I straw packing machine

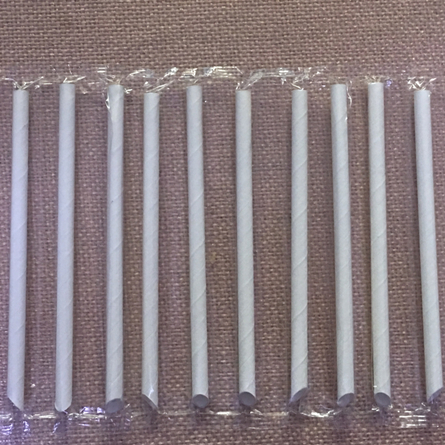

This machine is designed for packing sharp straw in sequence line, its application always accompany with Yogurt, milk, juice drinks, the sharp end tip can insert into the film or paper and aluminium sealing.

Characteristics:

1. Suitable for packing straight straw or cross cut straw in sequence line.
2. Both plastic film and paper wrapping material are suitable for this machine.
3. Automatic counting function and realize 10000-20000 units online packing without stop.
4. Straw size is flexible from OD4-12mm, length from 50-290mm.
5. Package transportation conveyor installed on this machine.

Model	HF-SP600	HF-SP700	HF-SP800
Packing Material	Paper Roll/Plastic Film	Paper Roll/Plastic Film	Paper Roll/Plastic Film
Straw Type	Paper/Plastic/PLA Straw	Paper/Plastic/PLA Straw	Paper/Plastic/PLA Straw
Straw OD	4-12mm	4-12mm	4-12mm
Original Straw Length	140-190mm	190-250mm	50-140mm
Packing Speed	0-600pcs/min	0-700pcs/min	0-800pcs/min
Packing Material Width	160-210mm	210-270mm	130-300mm
Packing Material Thickness	15-30um	15-30um	15-30um
Sealing Solution	Vacuum Sealing	Vacuum Sealing	Vacuum Sealing
Voltage	380v 3phas 50hz	380v 3phas 50hz	380v 3phas 50hz
Power	2KW	2KW	2KW
Machine Weight	500KG	600KG	700KG
Machine Size	1500*800*1300mm	1800*800*1300mm	2040*1250*1550
