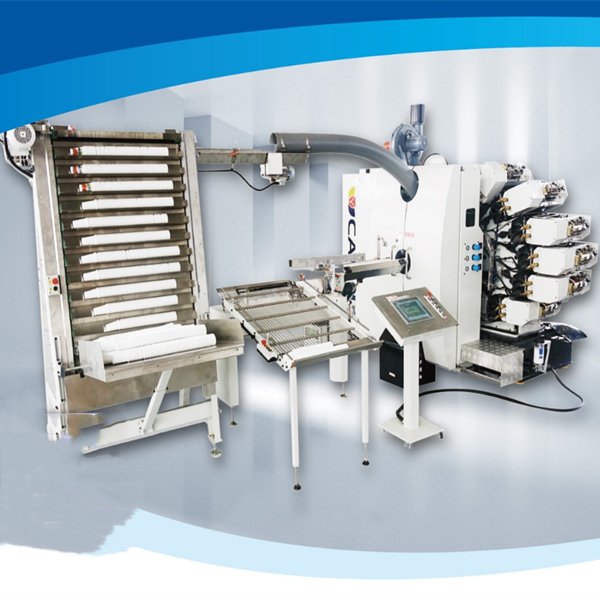

HF-500 dry offset cup printer

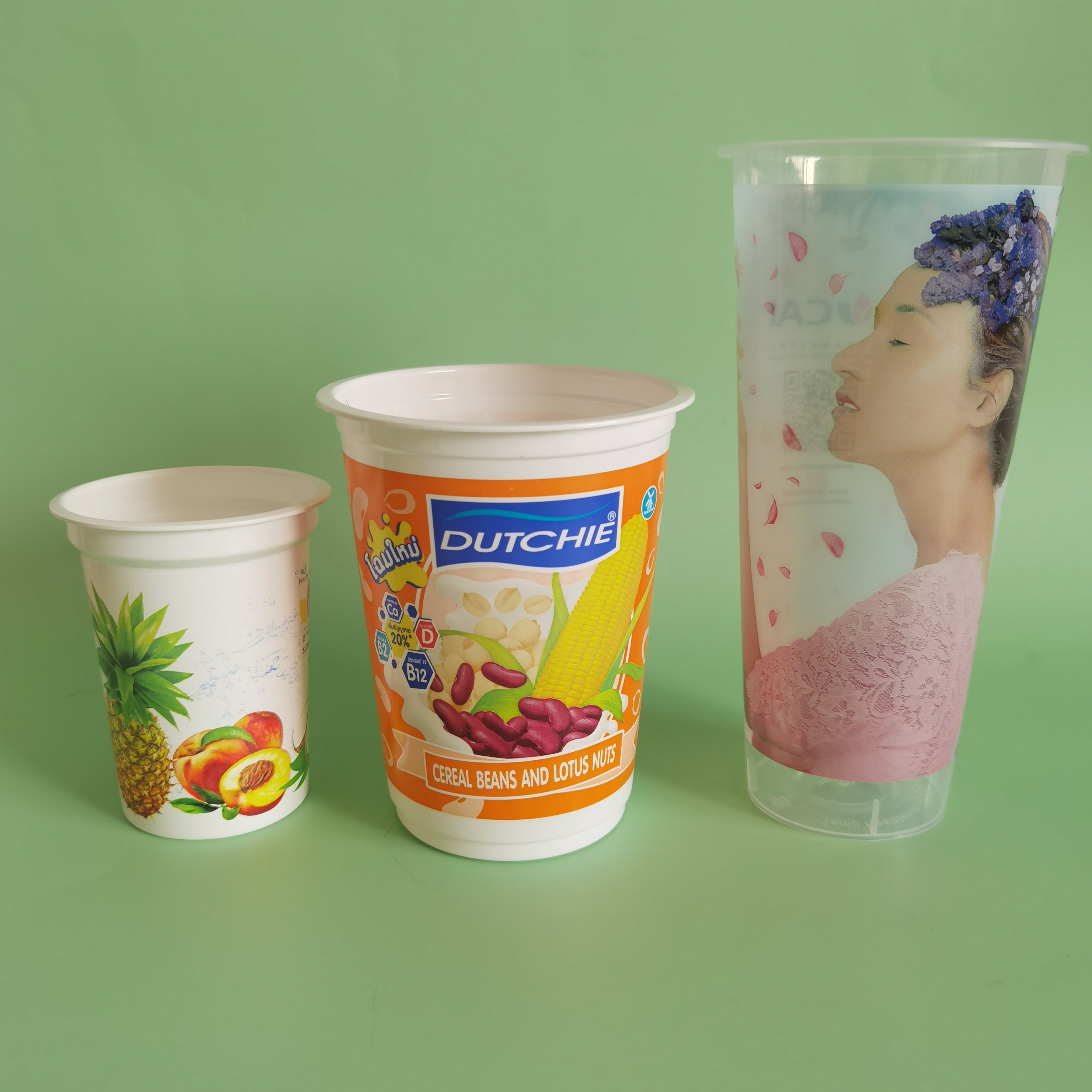

This machine is suitable for printing cups, raw material PP, PE, PS, EPS, PPT, PLA, paper, bagasse.
Characteristics:
1. Register-accurate plate adjustment achieves excellent printing results ups to 8 colors to meet diversified printing requirements.
2. Super customized index imported from Germany Index brand: Heinz 50,000 hours free of maintenance.
3. Constant temperature cooling system ensures excellent printing performance.
4. Use imported special materials shock absorption and wear resistance ensure sharp printing performance.
5. One ink knife has seven areas that can independently control the amount of ink, accurately control the amount of ink supplied patterns.
6. Measure after 24 hours constant temperature, the diameter difference of the 8pcs plate cylinders is controlled less than 0.01mm
7. Keep the highest points of 8pcs mandrel at the same level, weight difference of 8pcs mandrel within 5g
8. Offset cylinder run out ≤ 0.02mm
|
Model |
HF-400 |
HF-500 |
HF-600 |
|
Printing Speed |
400pcs/m |
500pcs/m |
600pcs/m |
|
Printing Color |
4 |
6 |
8 |
|
Cup Height |
30-180mm |
30-180mm |
30-200mm |
|
Rim Diameter |
40-180mm |
50-205mm |
50-205mm |
|
Max Printing Height |
120mm |
150mm |
150mm |
|
Max Printing Length |
300mm |
368mm |
368mm |
|
Machine Size |
7.05*2.87*2.4m |
6.9*3.15*2.4m |
7*3.55*2.4m |
|
Registration Accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
|
Voltage |
380V/60Hz |
380V/60Hz |
380V/60Hz |
|
Power |
20KW |
32KW |
40KW |
|
Machine Weight |
2500KG |
5500KG |
8000KG |
