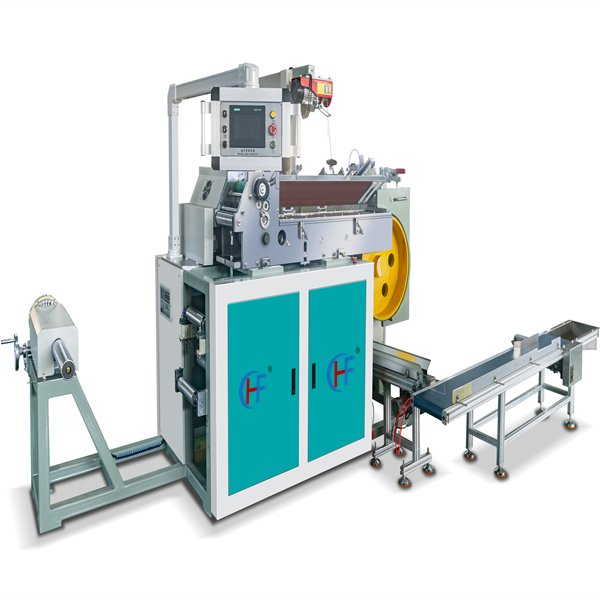

HF-ST1500 paper stick machine
This machine is designed to produce high strength and high quality paper stick, compared with traditional oblique rolling system, it's hard to change paper stick size, and stick is soft problem. The new direct rolling system is more stable, and easy to change paper stick size from 2.5mm to 4mm, and Siemens PLC and servo driver can calculate the stick OD and cut with fixed paper length. Most important is that the direct rolling system and increase machine running speed 50%-100%, and operation is much easier.
Characteristics:
1, machine equipped with SIEMENS PLC, HIM, Inverter
2, machine electronic parts use imported brands
3, machine design is more practical
4, machine is flexible to produce different size paper stick
5, machine running stable is fast and stable
|
Technical Parameter |
|
Model |
HF-ST1500 |
|
Paper Stick OD |
2.5-6mm |
|
Paper Stick Length |
60-350mm |
|
Paper Thickness |
50-80gsm |
|
Production Speed |
0-1800pcs/min |
|
Raw Material |
single light food grade white Kraft paper |
|
Paper Roll Width |
60-350mm |
|
Machine Net Weight |
2000kg |
|
Machine Gross Weight |
2100kg |
|
Machine Size |
3200*900*2200mm |
|
Machine Packing Size |
3400*1400*2300mm (main machine)
2000*50*70mm (stick conveyor) |
|
Voltage |
380v 3phas 60hz |
|
Power |
5.5kw |
|
Operation Person |
1 |
|
Language |
Chinese/English |
|
PLC |
SIEMENS-ST20 |
|
Touch Screen |
SIEMENS-7inches |
|
Frequency Inverter |
SIEMENS-V20 |
|
Relay |
PHOENIX-DC24 |
|
Proximity Switch |
AUTONICS |
|
Circuit Breaker |
EATON |
|
AC Contactor |
EATON |
|
Buttons |
EATON |
|
Servo Motor |
INOVANCE |
|
Servo Driver |
INOVANCE |
|
Main Motor |
ZD |
