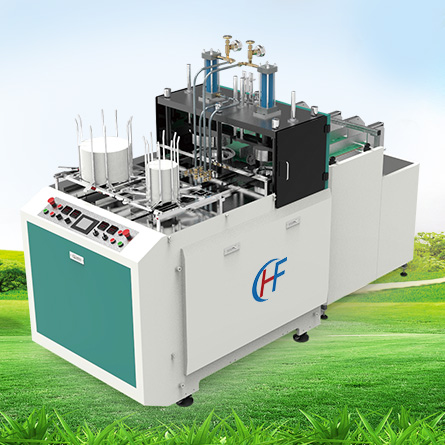

HF-DP700 paper plate machine
This machine can produce paper plate with two different size at the same time, machine occupy little working space but output is higher, whole machine working with low noise and low power consumption.
Characteristics：
1. Machine frame was built by 2 pieces of thick iron plate and optical axis, without welding, high precision, running stable.
2. Machine has PLC and touch screen.
3. Machine adopts mechanical working in paper feeding, it’s more stable than traditional feeding technology and the rejection rate is super low.
4. Machine design is nicer, with automatic counting and collection function, save labor cost.
5. Machine can connect with packing machine, suitable for whole production line design.
|
Model |
HF-DP700 |
|
Raw Material |
100-600gsm paper, cardboard, ivory board, aluminium foil paper |
|
Production Speed |
80-120pcs/min |
|
Original Paper Size |
OD 300mm |
|
Paper Plate Size |
5 inches to 11 inches |
|
Machine Weight |
1500kg |
|
Machine Size |
2500*1070*1800mm |
|
Voltage |
380v 3phas 50hz |
|
Power |
15kw |
|
Operation Person |
1 |
