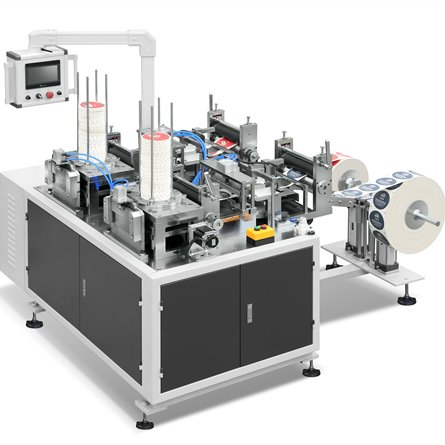

HF-PP100 paper punching machine
This machine can be widely used in paper products industry, plastic industry, metal industry, currently more customers use this machine to produce paper lids, paper sauce cup, crimp paper cup, paper baking cup, ice-cream paper spoon etc. But it can also be used for cutting aluminium foil, copper foil, plastic foil, PTFE foil etc with different shapes, such as heart, round, square, rectangular, star, the cutting blades can be customized accordingly.
Characteristics：
1. Automatic raw material roll feeding function, it can load 1 to 4 rolls depending on the product size.
2. The punching molds can be designed according with different shapes and sizes according with customer's requirement, such as heart, round, square, rectangular, heart, star, etc.
3. Machine has two servo motors, one is for material feeding, the other one is for material cutting, it can keep the feeding and cutting work synchronized and guarantee machine cutting very stable.
4. Machine has several sensor, the feed detect sensor, color sensor for tracking the printed material label, the blade cutting with fixed length sensor, the waste discharge sensor, and the waste counting sensor for every 3 or 5 times cutting the waste.
5. Machine has additional function, for example punching holes on the surface of material, the punching label can be customized.
6. Machine structure is very smart and compacted, easy for operation and one operator can manage 2-5 machines and just load material and take the finish product away.
|
Model |
HF-PP100 |
|
Raw Material Roll Size |
40-500mm |
|
Finish Product Shape |
round/square/heart/rectangular/oval/star/crescent etc |
|
Raw Material Thickness |
paper 250-350gsm, other material 0.01mm-0.1mm |
|
Production Speed |
100-300pcs/min |
|
Raw Material Type |
paper/aluminium/copper/plastic/PTFE |
|
Maximum Raw Material Diameter |
1000mm |
|
Machine Net Weight |
800kg |
|
Machine Size |
2300*1400*1400mm |
|
Voltage |
380v 3phas 50hz |
|
Power |
2kw |
|
Working Air |
0.3MPa |
