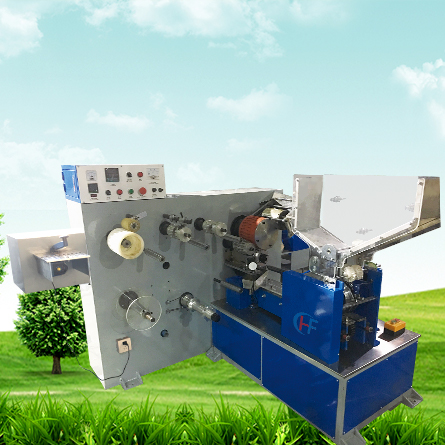

HF-UP600 U straw packing machine

HF-UP600 U straw packing machine

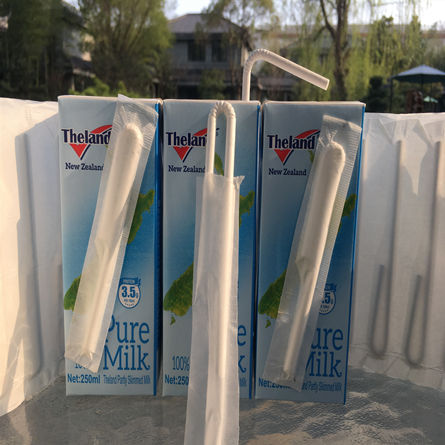

This machine exclusively designed for U-shape straw sequence packing solution, it will be applied with carton drinks for Tetra Pak and SIG.

Characteristics:

1. Exclusively for U-shape straw packing in sequence line for carton drinks.
2. Both plastic film and paper wrapping material are suitable on this machine.
3. Automatic counting function is easy for following carton packing solution.
4. Straw size is flexible from OD4-6mm, length from 120-230mm.
5. It can be applied for both PP straw, PLA straw, Paper Straw.
6. Equipped with manual fixing table.

Model	HF-UP600
Packing Material	Paper Roll/Plastic Film
Straw Type	Paper/Plastic/PLA Straw
Straw OD	4-6mm
Original Straw Length	120-230mm
Packing Speed	0-600pcs/min
Packing Material Width	100-150mm
Packing Material Thickness	15-30um
Sealing Methold	Vacuum Sealing
Voltage	380v 3phas 50hz
Power	3KW
Machine Weight	900KG
Machine Size	1800*1500*1520mm
