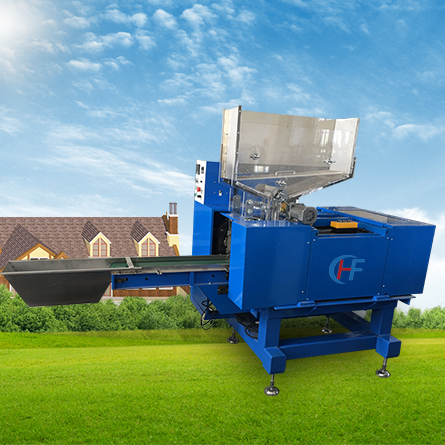

HF-PSB300 paper straw bending machine

HF-PSB300 paper straw bending machine

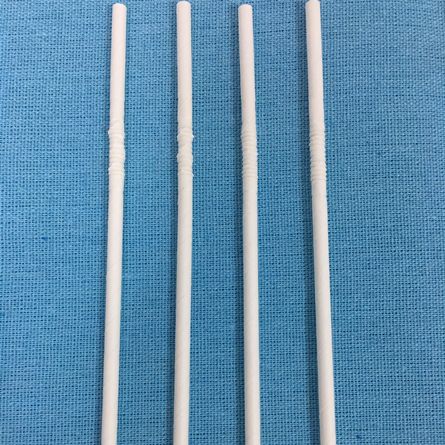

This machine overcomes HF-PSB90 shortcomings, it can bend small OD paper straw with 180°, the gap of the groove is shorter only 2mm, it can realize Tetra Pak and SIG U paper straw package solution for carton drinks.

Characteristics：

1. machine can bend small OD paper straw with fast and keep the forming successful rate higher above 99%
2. machine can bend paper straw from 180°, it’s good for Tetra Pak following procedure U straw packing machine, HF-UP600
3. machine run with low noise and low power consumption.
4. machine has high requirement for paper straw raw material(paper/glue).

Model	HF-PSB300
Straw Length	150-230mm
Straw OD	4.2mm/4.6mm/5mm±0.1mm
Straw ID	3.5mm/3.8mm/4.2mm±0.1mm
Straw WT	0.3±0.05mm
Max. Bending Degree	180°
Production Speed	0-300pcs/min
Machine Weight	1000kg
Machine Size	2500*1100*1650mm
Voltage	380v 3phas 50hz
Power	2.5kw
Operation Person	1
