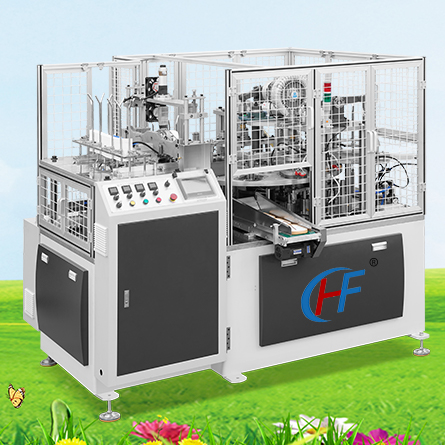

HF-SPL50 square paper lid machine

HF-SPL50 square paper lid making machine


Characteristics

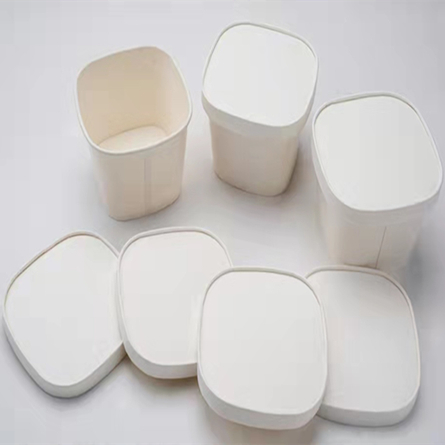

1. Exclusively for producing non-round shape paper lid machine, ice cream/food box paper cover making machine

2. Lid can be produced with non-stackable edge, extra auxiliary equipment will be needed to produce stackable lid

3. Smart interactive interface by HIM and PLC easy for operation and production management

4. Machine equipped with auto oil injection system, easy for maintenance

Model	HF-SPL50
Paper Lid Length	40-190mm
Paper Lid Width	40-150mm
Paper Lid Height	10-25mm
Paper Thickness	250-450gsm
Production Speed	30-55pcs/min
Raw Material	PE/PLA/BIOPBS coated paper
Machine Weight	3000kg
Machine Gross Weight	3100kg
Machine Size	2400*1600*1900mm
Machine Packing Size	2500*1700*2000mm
Voltage	380v 3phas 50hz
Power	6.5KW
PLC	INNOVANCE
Touch Screen	INNOVANCE
Servo Motor	INNOVANCE
Frequency Inverter	INNOVANCE
Sensor	AUTONICS
Main Motor	LIBANG
Electrical Components	SCHNEIDER
Bearing	IKO
Pneumatic Components	SMC
