HF-PCL100 paper lid machine

Details

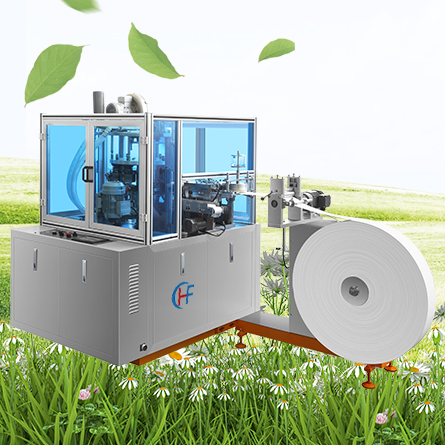

HF-PCL100 paper lid machine

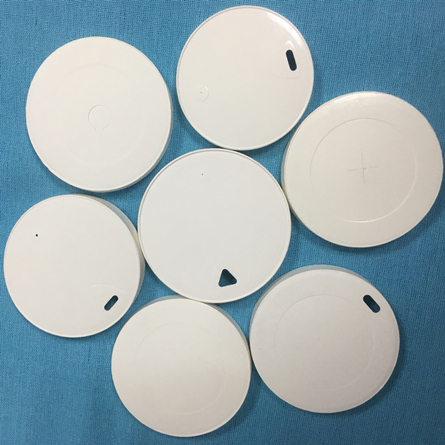

This machine can produce flat paper lid, machine accepts load paper roll, and punching through the mold, make different design shape on the top of lids, successful rate is higher and operation system is simple.

Characteristics:

1. Automatic paper roll feeding function, it can form into paper cup lid in one-time processing.
2. The punching molds can be designed according with the cup/bowl size.
3. Special cut shape can be designed on the top of lid, crossing, round role, triangle, sip, flat, etc.
4. Smart interactive interface by touch screen, can monitor the actual production condition online.
5. Machine equipped with conveyor, it can automatically count and collect the final paper lid.

Model HF-PCL100
Paper Cup Lid Size 55-195mm
Paper Cup Lid Height 8-15mm
Paper Thickness 250-350gsm
Production Speed 70-120pcs/min
Raw Material PE/PLA coated paper
Paper Roll width 90-250mm
Machine Net Weight 2200kg
Machine Size 2600*1400*1800mm
Voltage 380v 3phas 50hz
Power 10kw
Working Air 0.3MPa
